IGGmat

Erosion control blankets

iGGmat Mulch

Hallo. Ich bin ein kleiner Blindtext. Und zwar schon so lange ich denken kann. Es war nicht leicht zu verstehen, was es bedeutet, ein blinder Text zu sein: Man ergibt keinen Sinn. Wirklich keinen Sinn. Man wird zusammenhangslos eingeschoben und rumgedreht – und oftmals gar nicht erst gelesen. Aber bin ich allein deshalb ein schlechterer Text als andere? Na gut, ich werde nie in den Bestsellerlisten stehen. Aber andere Texte schaffen das auch nicht. Und darum stört es mich nicht besonders blind zu sein. Und sollten Sie diese Zeilen noch immer lesen, so habe ich als kleiner Blindtext etwas geschafft, wovon all die richtigen und wichtigen Texte meist nur träumen.

The iGGmat mulch K-100-M-600 is a medium-weight fibermat, which consists of coconut-fibers - a degradable and renewable raw material. Its carrier material is a black PE-poremembrane with a grammage of 37.0 g/m². The surface of the membrane has 62 holes per square centimeter, which all taper at a ratio of 4 to 1. To avoid damages caused by footsteps the membrane is of high elasticity. The membrane is environmentally neutral, because it decomposes to carbon dioxide and water after a few years.

1. PP-netting

2. coir fiber

3. PE-poremembrane 2+

Application:

The iGGmat mulch should be placed over the whole area and parallel to the plantings. The mats can easily be cut with a scissor to their proper size. We recommend, that the pieces should interleave about 5-10 cm and two iGGfix wirebrackets (DBU 230 oder 150) per square meter should be used to secure the mat.

Advantages:

The shading prevents the soil from being parched by the wind and the sun. It has been approved that the mats can reduce evaporation up to 50 %, while they supply a microclimate, which perfectly cultivates the root growth of the plantings. Additionally the coconut-fibers provide a good heat insulation, which extends the duration of the PE-membrane.

Furthermore the iGGmat mulch K-100-M-600 protects the soil against rain, wind- and water-erosion right away, which makes it the perfect solution to stabilize steep slope plantings. The iGGmat mulch is inexpensive and will lower the maintenance costs in the long run, because it prevents the growth of undesired weeds by shading the soil. Nevertheless the permeable membrane provides an optimal water and gas supply of the covered soil.

Measurements:

roll width roll length  square meter
 2.40 m   42.00 m  100.8 m²

Downloads:

Product flyer:

iGGmat mulch

Technical data sheet:

iGGmat K-100-P2-PF-M-600

Read more ...

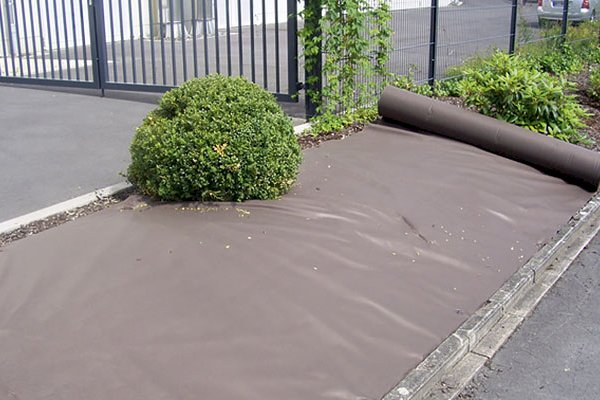

iGGmat mulch-fleece consists of 100 % poly lactic acid fibers (pla). It is a brown, mechanically produced needle-fleece with a one-sited calendaring. The raw material (pla) is a 100 % renewable resource, which is also 100 % biodegradable.

Application:

iGGmat mulch-fleeces are placed with light soil contact all over the target area. Neighboring pieces of the mulch-fleece should interleave about 10- 20 cm. The endings should be placed contrary to the main wind direction and should be embedded in the earth. To secure the fleece, we recommend the use of two iGGfix wirebrackets (DBU 230 oder 150) per square meter.

Specifications:

mechanical property standard  average tolerance
weight g/m²  EN 965  150 g  +/- 8 %
thickness mm  ---  0,90 mm  +/- 0,3 mm
tensile strenght MD EN ISO 10319  1,65 kN/m  +/- 0,5 kN/m
elongation MD EN ISO 10319 50 % +/- 10 %
tensile strenght CMD EN ISO 10319 3,10 kN/m +/- 0,5 kN/m
elongation CMD EN ISO 10319 50 % +/- 10 %



polymeric properties  average
biodegradability
(half life MW, 20°C - 70 % RF)
 1.000 days
fossil energy consumption (pla korn)  34 MJ/kg
CO2 emission (pla korn)  0 kg CO2/kg pla
hydraulic permeability

+/- 35 liter/m² sec

Dimensions:

    tolerance
roll length 50 m   +/- 3 %
roll width  2 m  +/- 1 %
tube diameter inside  120 mm  ---

Downloads:

Product flyer:

iGGmat mulchvlies

Read more ...
